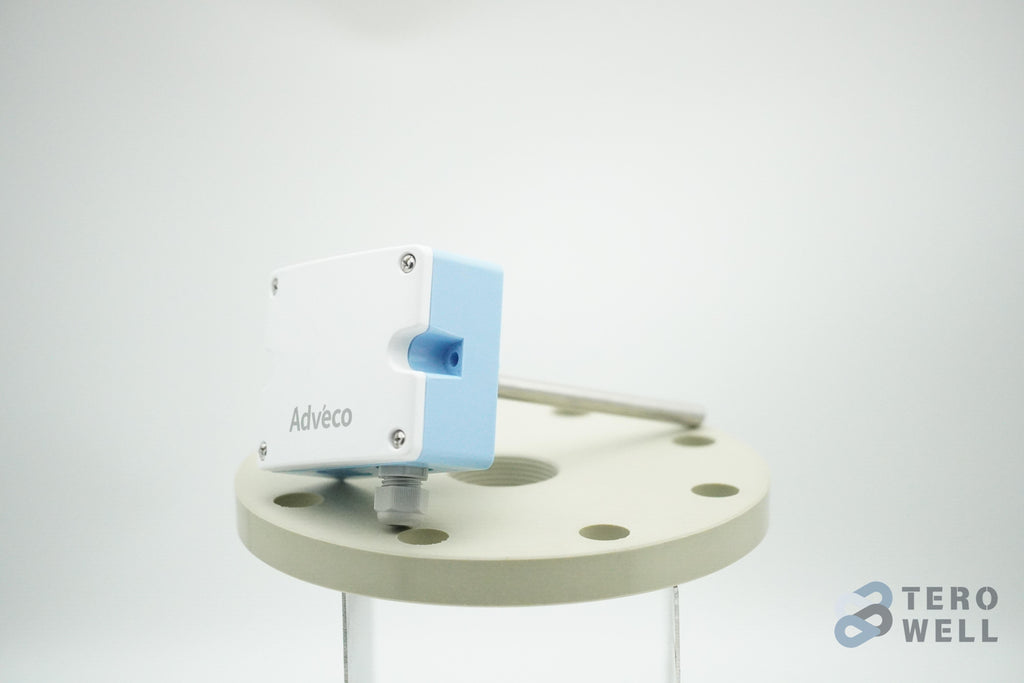

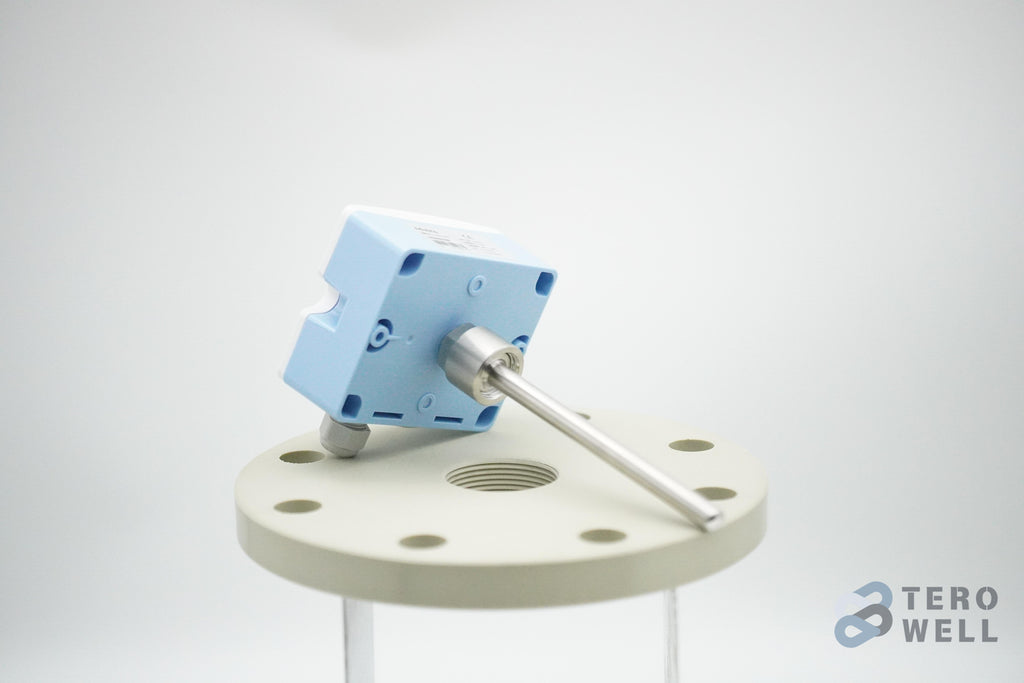

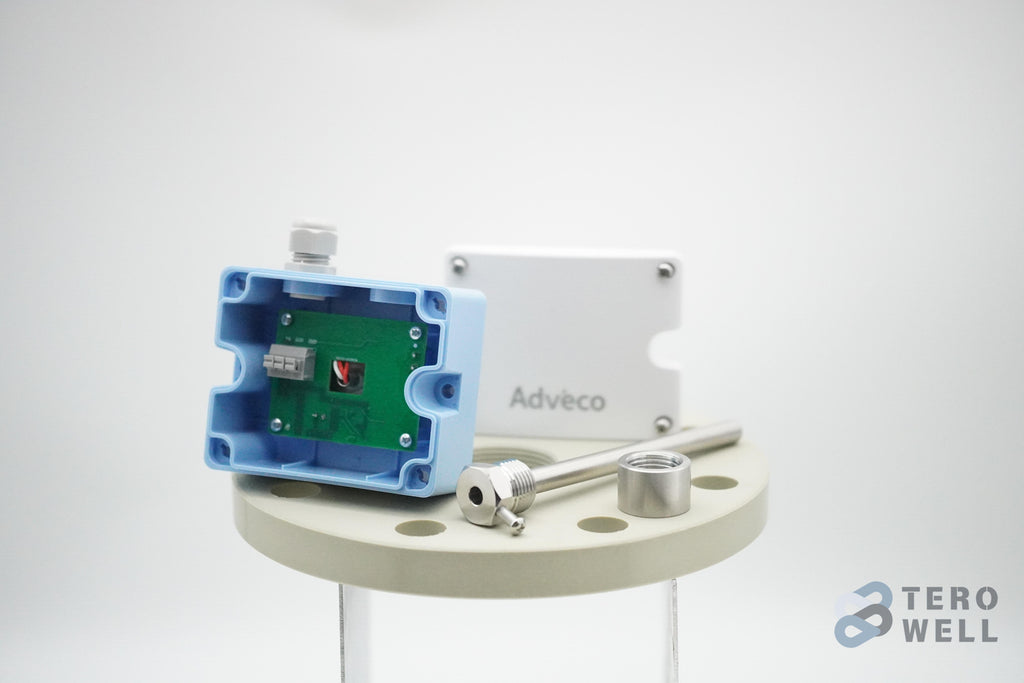

Immersion Temperature Sensor
Immersion Temperature Sensor
| BCS-1T PV-0021 |
Overview
The BCS-1T series temperature sensors include three types: Duct Type, Pipe Type (including sleeve) and Wall-Mounted Type. The output signals include 0V~10V, 4mA~20mA and resistance value (PT1000). It can be used for measuring the temperature of gas in ducts, water temperature in pipes and indoor/outdoor air temperature.
• Easy and convenient installation: New industrial appearance with quick-installation design, suitable for rapid installation and deployment.
• Imported Heraeus Class A sensor with high precision, fast response and low temperature drift.
• Excellent anti-interference ability and protection function; CE Certified, IP65, ROHS.
Product Models and Main Parameters
|
Product Model |
Application Occasion |
Output Signal |
Measurement Range |
Measurement Accuracy |
Probe Size |
Installation Method |
|
BCS-1TDV-001F |
Duct Type |
0~10V, 4~20mA |
-40°C~80°C |
±0.3°C @ 25°C |
100*Φ6 mm |
Flange |
|
BCS-1TDV-003F |
200*Φ6 mm |
|||||
|
BCS-1TDA-001F |
PT1000 |
-40°C~80°C |
±0.2°C @ 0°C |
100*Φ6 mm |
||
|
BCS-1TDA-003F |
200*Φ6 mm |
|||||
|
BCS-1TPV-0021 |
Pipe Type |
0~10V |
-40°C~100°C |
±0.3°C @ 25°C, ±0.2°C @ 0°C |
150*Φ6 mm |
|
|
BCS-1TPA-0021 |
4~20mA |
|||||
|
BCS-1TPP-0021 |
PT1000 |
|||||
|
BCS-1TEV-000M |
Wall-Mounted Type |
0~10V |
-40°C~80°C |
±0.3°C @ 25°C |
75*Φ6 mm |
Wall-Mounted |
|
BCS-1TEA-000M |
4~20mA |
|||||
|
BCS-1TEP-000M |
PT1000 |
-40°C~80°C |
±0.2°C @ 0°C |
