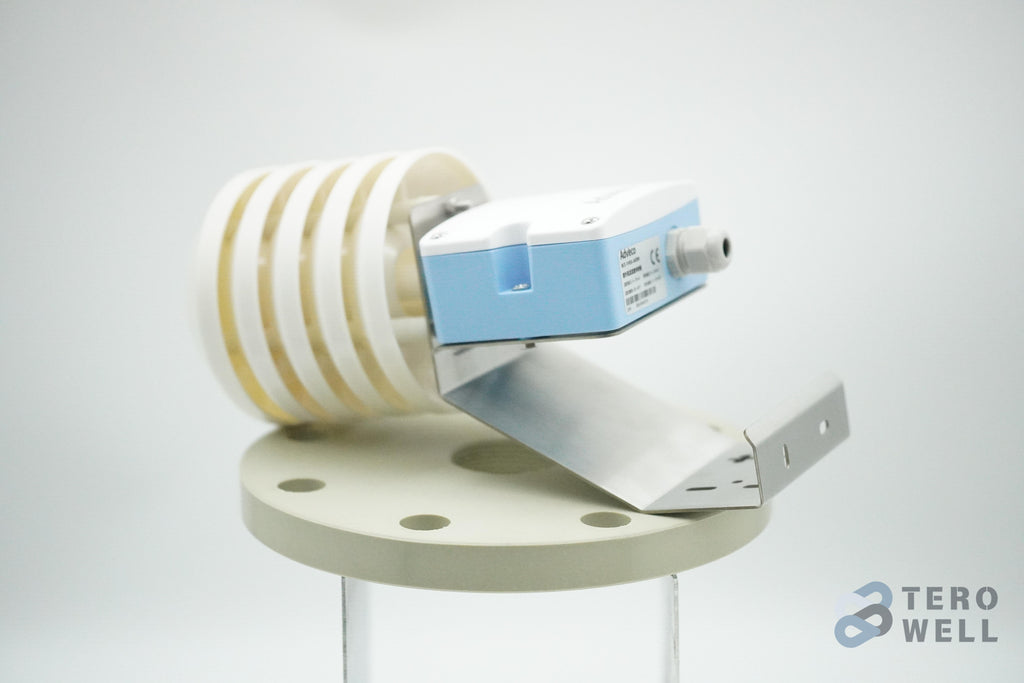

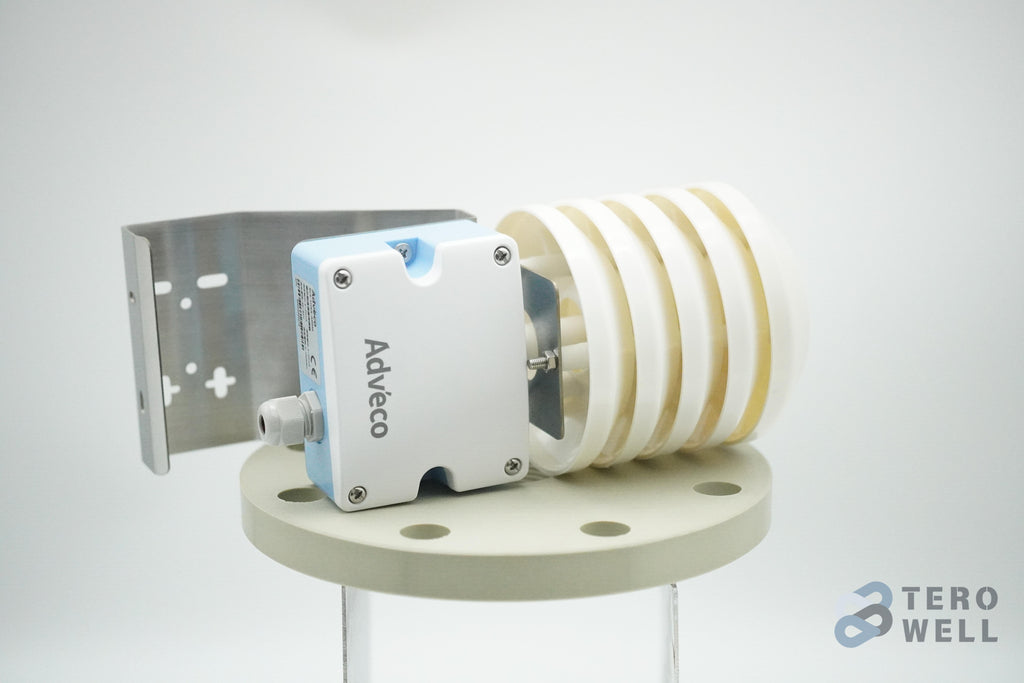

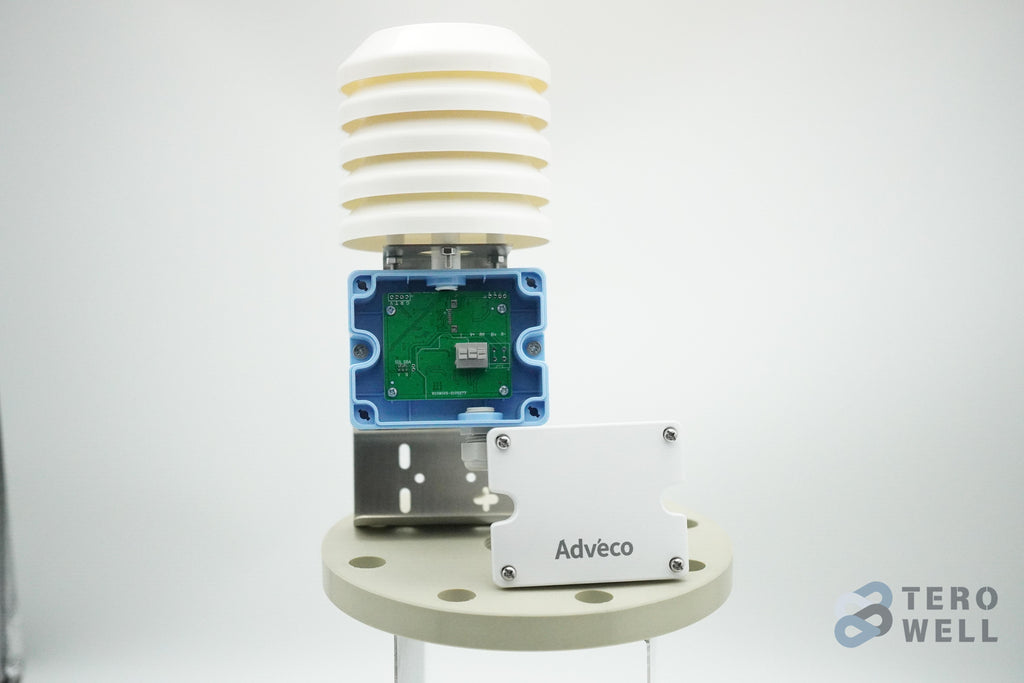

Outdoor Temperature & Humidity Sensor
Outdoor Temperature & Humidity Sensor
Overview
The BCS-1H series temperature and humidity sensors include three types: Duct Type, Outdoor Type and Indoor Type. It can output two analog signals (0V~10V, 4mA~20mA) and Modbus RTU (RS485) communication. It can be used for measuring the temperature and humidity of air in ducts, indoors and outdoors.
• New industrial appearance with quick-installation design, suitable for rapid installation and deployment.
• Imported sensor with high precision, fast response and good long-term stability.
• Multiple installation and output methods available.
• Excellent anti-interference ability and protection function; CE Certified, IP65, ROHS.
Product Models and Main Parameters
|
Product Model |
Application Occasion |
Output Signal |
Measurement Range |
Measurement Accuracy |
Probe Size |
Installation Method |
|
BCS-1HDV-V00F |
Duct Type |
0~10V |
Temperature: -40°C~80°C; Humidity: 0~100%RH |
±0.3°C @ 0°C~60°C; ±3%RH @ 20%~80%RH |
200 mm |
Flange |
|
BCS-1HDA-A00F |
4~20mA |
|||||
|
BCS-1HDR-ROOF |
RS485 |
|||||
|
BCS-1HRV-V00W |
Indoor Type |
0~10V |
Temperature: -40°C~80°C; Humidity: 0~100%RH |
±0.3°C @ 0°C~60°C; ±3%RH @ 20%~80%RH |
None |
Wall-Mounted |
|
BCS-1HRA-A00W |
4~20mA |
|||||
|
BCS-1HRR-ROOW |
RS485 |
|||||
|
Outdoor Type |
0~10V |
Temperature: -40°C~80°C; Humidity: 0~100%RH |
±0.5°C @ 20°C; ±3%RH @ 20%~80%RH |
None |
Bracket |
|
|
BCS-1HEA-A00M |
4~20mA |
|||||
|
BCS-1HER-ROOM |
RS485 |
